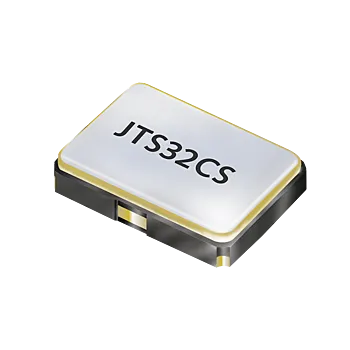

(VC)TCXO Stratum 3 with Clipped Sine output

The JTSxxCS-Serie is a VC-TCXO offering ±4.6ppm stability over 20 years. Supplied at 1.8–3.3V in a 3225 package with clipped sinewave output, it meets ITU-T G.8262 and GR-1244 standards, ideal for Stratum 3, EECs, and OTN equipment. • Compliance with ITU-T G.8262 Options 1 & 2 and Stratum 3 in GR-1244 Core & CR-253-Core, • Free-run frequency stability of ±4.6ppm including 20-year aging, • 24-hour holdover stability of ±0.37ppm with temperature variation, • Frequency stability of ±280ppb available, • Operating temperature range as wide as -40°C to +85°C, • Short term frequency stability (ADEV) of 0.1ppb typ at τ = 1 sec, • Phase noise as low as -148 dBc/Hz typ. at 100kHz offset, • Supply voltage ranges from 1.8V up to 3.3V, • Current consumption as low as 3mA max with clipped sinewave output, • Frequency range 9.6MHz to 50MHz, • Various tuning options available, • RoHS and REACH-compliant, 100% lead-free, conflict minerals free.
