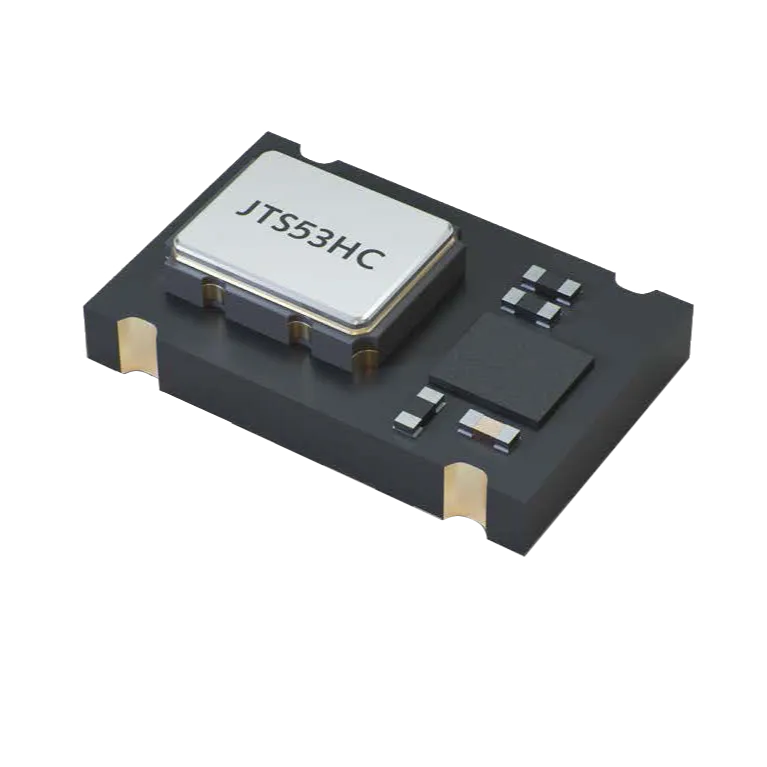

(VC)TCXO Stratum 3 with HCMOS output signal

The JTSxxHC-Serie is a voltage-controlled, temperature-compensated crystal oscillator (VC-TCXO) designed for Stratum 3 reference clocks. It offers tight frequency stability (±4.6ppm over 20 years), supports ITU-T G.8262 and GR-1244 standards, and suits synchronous Ethernet and OTN equipment. • Compliance with ITU-T G.8262 Options 1 & 2 and Stratum 3 in GR-1244 Core & CR-253-Core, • Free-run frequency stability of ±4.6ppm including 20-year aging, • 24-hour holdover stability of ±0.37ppm with temperature variation, • Frequency Stability as tight as ±50ppb, • Operating temperature range as wide as -40°C to +105°C, • Short term frequency stability (ADEV) of 0,1ppb typ. at τ = 1 sec, • Phase noise as low as -159 dBc/Hz @100kHz offset, • Frequency range 9.6MHz to 50.0MHz, • Current consumption as low as 10mA max with HCMOS output, • Various tuning options available, • RoHS and REACH-compliant, 100% lead-free, conflict minerals free.
