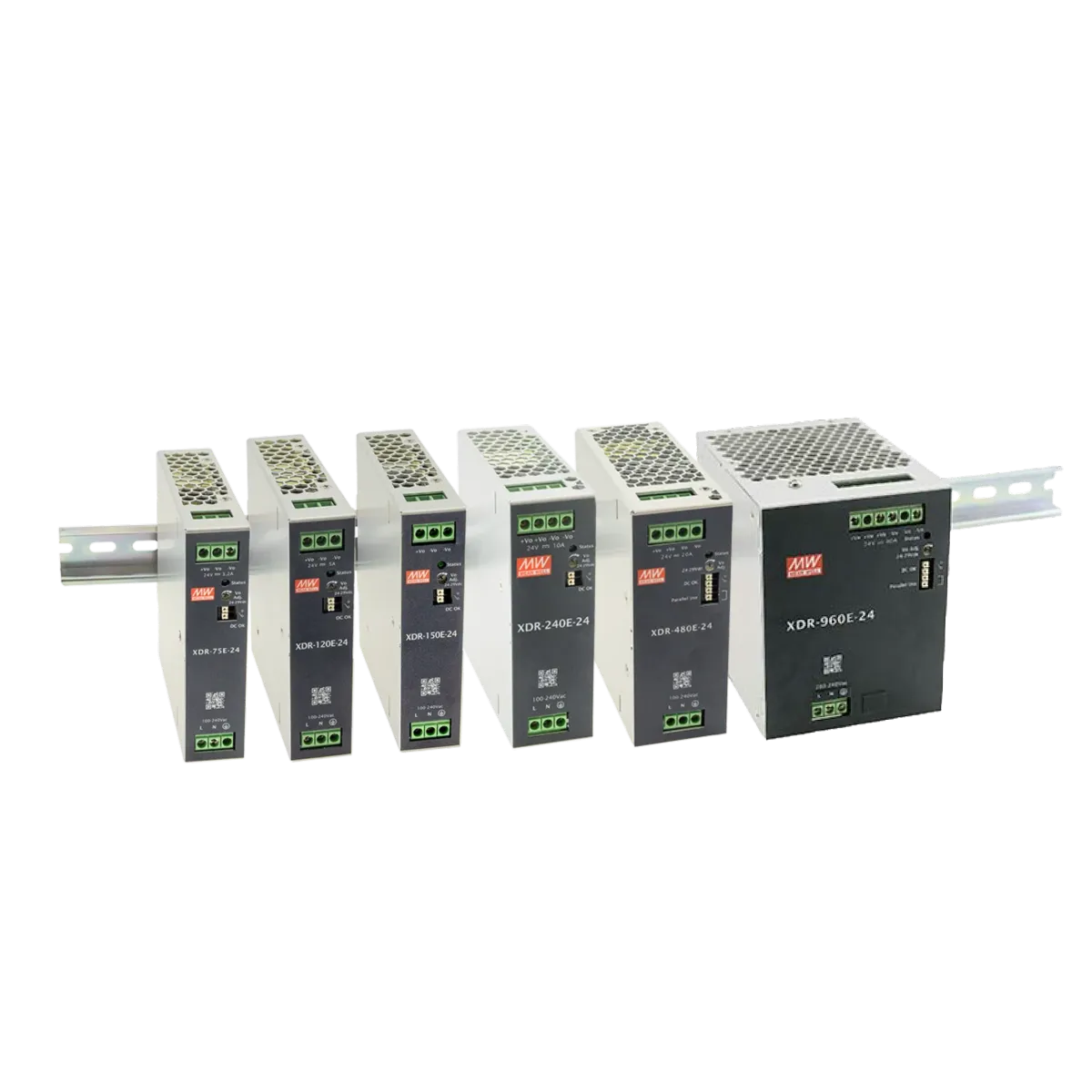

XDR-E Series 75W-960W

The MEAN WELL XDR-E Series is a compact DIN-rail AC/DC power supply range, covering 75W up to 960W across multiple output voltages (12V, 24V, 36V, 48V). It supports a wide 85–264Vac single-phase input and is designed for space-efficient installation with ultra-slim widths (as little as 30mm for lower-power models, up to 96mm for 960W). With efficiencies of up to ~96% and low no-load power draw, the series supports energy-efficient panel designs. The fanless and natural-convection-cooled enclosure helps reduce maintenance and improve reliability. The operating ambient range spans from –40°C to +70°C (derating required above certain thresholds). The XDR-E Series is certified for Over-Voltage Category III (OVC III) and carries global approvals (CB, UL, CE, UKCA), making it suitable for a wide range of industrial and building-automation applications. Standard protections such as overload, short circuit, over-temperature and over-voltage are included, and a DC-OK relay contact is provided for system monitoring. With multiple output voltage options, compact footprint and robust spec, the XDR-E Series delivers a clean, reliable AC/DC power solution for modern control panels, machine-building and infrastructure installations.
