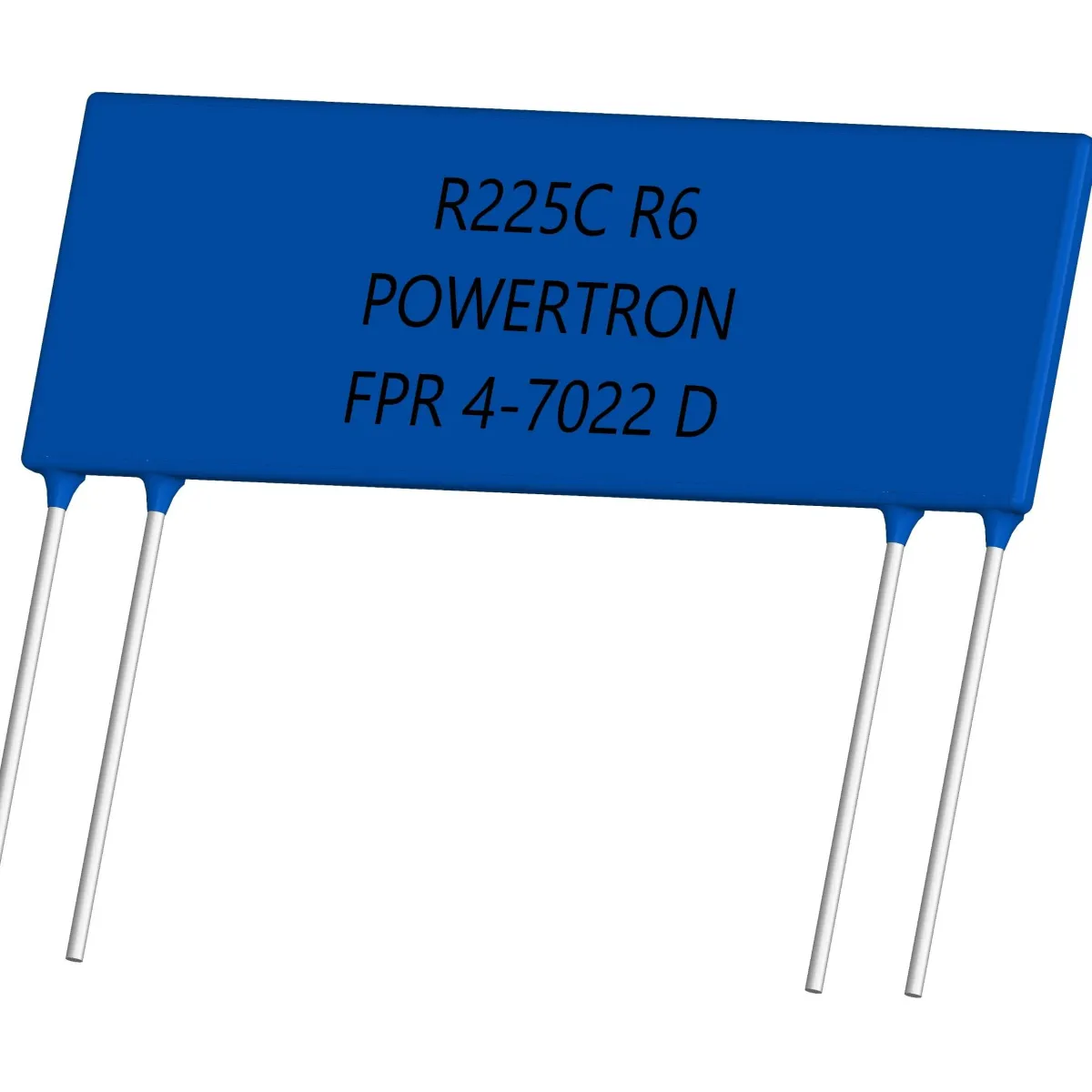

FPR 4-7022 Current-Sensing Resistor precision high-power resistor with low TCR for current measurement and control VPG Foil Resistors' FPR 4-7022is a high-accuracy, 4-terminal current-sensing resistor designed for demanding power electronics applications. Built with CuNiMn foil on an anodized aluminum substrate and housed in a sintered epoxy package, this resistor offers reliable thermal and electrical performance under extended load conditions. With a power rating of 5 W in free air and a resistance range from 0.1 Ω to 10 Ω, the FPR 4-7022 provides tight resistance tolerances down to ±0.1%, and optional TCR values as low as ±15 ppm/K. The resistor demonstrates excellent stability, with typical drift of ±0.1% after 1000 hours, and is well-suited for precision current monitoring in power management, industrial automation, and instrumentation systems. Features • Resistance range: 0.1 Ω to 10 Ω • Resistance tolerance: ±0.1%, ±0.2%, ±0.25%, ±0.5%, ±1.0% • Power rating: 5 W (free air) • Temperature coefficient of resistance (TCR): o Standard: ±25 ppm/K (20°C to 60°C) • Load life stability (1000 h): to ±0.1% • Operating temperature range: –40°C to +130°C • Thermal EMF: < 1 µV/K • Insulation resistance: > 10 GΩ • Construction: o CuNiMn foil resistive element o Anodized aluminum substrate o Epoxy sintered housing o 4-terminal configuration with tinned copper connectors • Weight: 6 g • Standard part example: FPR 4-7022 0R225 D 0.2% Q
VPG Foil ResistorsStand C13VPG Foil Resistors, comprised of world-class brands VFR, Alpha Electronics, Powertron and APR, specializes in high-performance resistor technologies. Built on decades of expertise in Bulk Metal® Foil engineering, we deliver industry-leading precision and stability where it matters most. What We Do We design and manufacture a comprehensive range of resistive components, from ultra-high precision foil resistors to robust, application-specific solutions. But more importantly, we help engineers identify the critical resistors in their designs—the components that ultimately define accuracy, drift, and reliability over time. By upgrading just these key positions with VPG Foil Resistor technology, engineers can significantly enhance system’s performance. Our offerings include: Ultra-Precision Foil Resistors: Near-zero TCR, exceptional long-term stability, and industry-leading accuracy Precision Resistors: High-performance solutions for advanced analogue electronics and control systems Power & Current Sensing Resistors: Reliable performance in demanding, high-power environments Custom Engineered Solutions: Tailored designs optimized for critical resistors within your application Key Application Areas Our technologies support innovation across industries where long-term stability and guaranteed performance are essential: Automatic Test Equipment (ATE): Maintain measurement accuracy over time, reducing calibration periods Test & Measurement: Ensure consistency and repeatability in sensitive instrumentation Semiconductors: Support ultra precise manufacturing and characterization equipment Fibre Optics & Data Centres: Improve uptime and lifetime in performance-critical infrastructure Industrial Automation: Enhance control stability and reduce drift in continuous operation systems Our Approach to Innovation We focus on enabling next-generation systems through: Targeted use of ultra-stable resistors in critical circuit locations Compact, high-performance solutions for space-constrained designs High-reliability resistors for mission-critical and high-uptime environments Application-driven engineering that addresses real-world drift, load-life, and environmental challenges Why VPG Foil Resistors? When long-term performance is non-negotiable, engineers trust VPG Foil Resistors because we deliver more than just components—we deliver confidence in system behaviour over time. We combine: Proven foil technology leadership Exceptional long-term stability under real-world conditions The ability to upgrade key resistors for maximum system impact Deep application expertise across high-tech industries Meet Us at the Event Visit our booth C13 to see how changing just a few critical resistors can transform your system’s long-term performance. Our team will help you identify where precision matters most—and how to achieve it. Precision Where It Matters Most.
